Feichun SIENOPYR FR M2XH 0.6/1kV Power Cables for Ships and Offshore Units: Comprehensive Application and Installation Guide
In the demanding environments of marine and offshore installations, reliable and high-performance cables are critical.
Feichun's SIENOPYR FR M2XH 0.6/1kV Power Cables are designed specifically to meet the unique challenges of fixed installations on ships and offshore units, ensuring durability, fire safety, and excellent electrical performance.
This guide will provide a detailed overview of these cables, including their key features, technical specifications, installation methods, and maintenance best practices.
Whether you're installing cables in the engine room, control spaces, or on the weather deck, this article will equip you with the knowledge you need for a successful application.
2. Technical Specifications
2.1 Construction Features
| Feature | Details |
| Conductor Material | Plain, round stranded copper, compliant with IEC 60228 Class 2 or Class 5 |
| Insulation Material | Cross-linked polyethylene (XLPE) |
| Core Identification | Follows HD 308 S2 standard |
| Outer Sheath Material | Halogen-Free Flame Retardant (HFFR) compound |
The use of XLPE insulation ensures excellent thermal and electrical performance, while the HFFR sheath provides flame retardancy and low smoke emissions, making the cable suitable for safety-critical installations.
2.2 Electrical Characteristics
| Parameter | Specification |
| Rated Voltage | 0.6/1kV (Um: 1.2kV) |
| Test Voltage | 3.5kV |
| Max. Conductor Temperature | 90°C |
| Short Circuit Temperature | 250°C |
These electrical properties ensure stable power transmission and compliance with marine standards, even in high-demand scenarios.
2.3 Thermal Properties
| Parameter | Value |
| Maximum Operating Temperature | 90°C |
| Short Circuit Temperature | 250°C |
| Minimum Laying Temperature | -15°C |
The cable's ability to withstand high short-circuit temperatures ensures durability and reliability in the event of an electrical fault.
3. Standards and Compliance
3.1 Marine Standards
Feichun's SIENOPYR FR M2XH cables are designed to meet or exceed the following marine and offshore standards:
- IEC 60092-353: Marine power cables
- IEC 60092-360: Insulation materials
- IEC 60092-201: System design
These standards ensure compatibility with shipboard systems and compliance with classification society requirements.
3.2 Safety Standards
| Feature | Standard |
| Flame Retardancy | IEC 60332-1-2 / IEC 60332-3-22 |
| Low Smoke Emission | IEC 61034 |
| Halogen-Free Properties | IEC 60754-1/2 |
| Oil and Ozone Resistance | IEC 60811-404 |
4. Marine Installation Guidelines
4.1 Location-Specific Requirements
| Location | Key Considerations |
| Engine Room | High-temperature tolerance and oil resistance |
| Accommodation Spaces | Low smoke and halogen-free properties for safety |
| Weather Deck | UV and salt spray resistance for outdoor durability |
| Junction Boxes | Secure terminations and ingress protection |
4.2 Installation Methods
| Parameter | Requirement |
| Bending Radius | 6 × OD |
| Support and Securing Systems | Proper clamps and supports |
| Penetration Sealing | Fireproof and watertight seals |
| Termination Techniques | Crimping and sealing as per standards |
5. Environmental Protection Measures
5.1 Fire Safety Features
The HFFR outer sheath ensures superior flame retardancy and smoke suppression, reducing hazards during a fire. The cable complies with:
- IEC 60332-1-2 (Flame retardancy of a single cable)
- IEC 60332-3-22 (Flame retardancy in bundled cables)
5.2 Chemical Resistance
| Parameter | Property |
| Oil Resistance | Compliant with IEC 60811-404 |
| Ozone Resistance | Yes |
| UV Resistance | Ensures long-term durability outdoors |
| Salt Spray Protection | Suitable for marine environments |
6. Installation Challenges and Solutions
6.1 Common Issues
- Space Constraints: Use compact routing and multi-layered configurations.
- Mechanical Stress: Employ robust clamps and vibration dampeners.
- Temperature Management: Ensure appropriate derating for high temperatures.
6.2 Best Practices
| Challenge | Solution |
| Cable Routing | Use direct paths to minimize bends |
| Stress Relief | Install proper strain relief at terminations |
| Mechanical Protection | Install conduits in high-impact areas |
7. Load Calculations and Sizing
7.1 Current Rating Factors
| Factor | Consideration |
| Temperature Derating | Adjust for ambient conditions |
| Grouping Factors | Avoid excessive heating from nearby cables |
| Voltage Drop | Keep voltage loss within acceptable limits |
8. Testing and Commissioning
8.1 Pre-Installation Testing
| Test | Purpose |
| Insulation Resistance | Verify integrity of insulation |
| Continuity Checks | Ensure proper conductor connections |
8.2 Post-Installation Verification
| Test | Purpose |
| System Testing | Validate electrical performance |
| Performance Verification | Confirm compliance with specifications |
9. Maintenance and Lifecycle Management
9.1 Preventive Maintenance
Regular inspection ensures continued performance and safety. Monitor for:
- Changes in signal quality
- Environmental wear and tear
9.2 Troubleshooting Guide
| Issue | Solution |
| Signal Degradation | Check for damaged insulation |
| Physical Damage | Replace compromised sections |
10. Quality Assurance
Feichun cables undergo rigorous testing to ensure high standards of safety and performance, including:
- Environmental resistance tests
- Electrical property verification
11. Conclusion
The Feichun SIENOPYR FR M2XH 0.6/1kV Power Cable delivers exceptional performance and safety for marine and offshore applications. With its robust construction, adherence to international standards, and focus on fire safety, it is the ideal choice for demanding environments.
Whether you are designing a new system or upgrading existing installations, this cable ensures reliability and peace of mind.
Contact Feichun today to learn more about how our cables can meet your marine and offshore needs.
Note: This is just part of the standard parameters of our products. Please contact our Engineer if you need more. And the information contained within this webpage is for guidance only and is subject to change without notice or liability. All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All pictures shown are for illustration purposes only. The actual product may vary. All the information is provided in good faith and is believed to be correct at the time of publication.
|
|

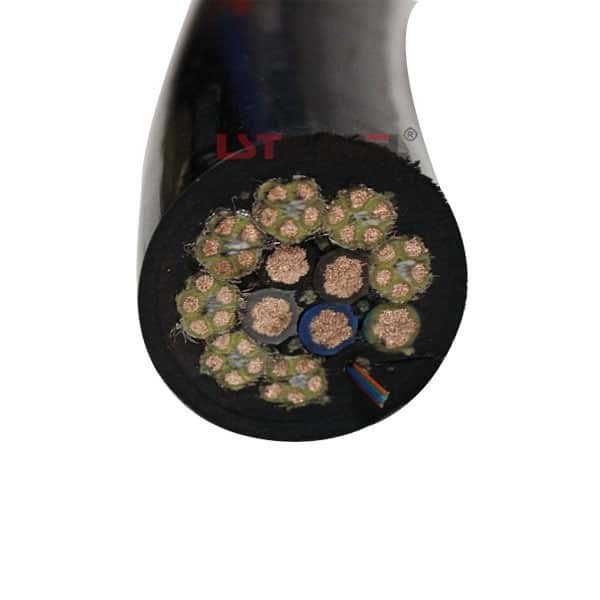

Feichun SIENOPYR FR M2XH 0.6/1kV Power Cables for Ships and Offshore Units: Comprehensive Application and Installation Guide Images
|
