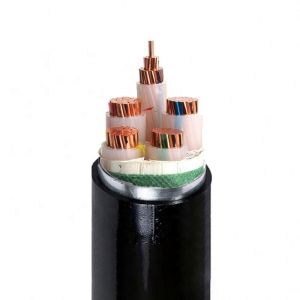

Feichun SPREADERFLEX SYSLTOE: Advanced Hybrid Solutions for Cold Environment Spreader Applications
The Feichun SPREADERFLEX SYSLTOE is a versatile feeder cable specifically designed for load-lifting equipment like spreaders operating under high mechanical stress in gravity-fed collector basket systems.
With a voltage rating of 0.6/1kV and adaptability to cold environments, this cable ensures unmatched reliability and performance.
Its hybrid power-optical design combines electrical and fiber-optic transmission capabilities, making it ideal for modern material handling systems. Key performance features include high tensile strength, robust environmental resistance, and exceptional operational flexibility in temperatures as low as -50°C.
System Integration
This cable excels in spreader applications, particularly in gravity-fed collector systems, where load-lifting equipment must maintain precision and efficiency in challenging environmental conditions.
Its advanced insulation and sheathing materials provide durability, while its power and optical components ensure seamless performance in all climates, even in freezing temperatures.
Technical Construction
Power Cable Design
The power conductors of SPREADERFLEX SYSLTOE are built with:
- Extremely finely stranded copper for flexibility and conductivity.
- Insulation made from thermoplastic polymer, offering excellent electrical and mechanical properties.
- Bundle assembly architecture with a central support element to enhance structural integrity and load distribution.
| Property | Specification |
|---|---|
| Conductor Material | Extremely finely stranded copper (Class FS) |
| Insulation Material | Thermoplastic polymer |
| Voltage Rating | 0.6/1kV |
| Test Voltage | 3.5kV |
| Temperature Range (Fixed) | -50°C to 80°C |
| Temperature Range (Flexible) | -40°C to 80°C |
Fiber Optic Integration
Multi-Mode Solutions
The multi-mode fibers provide high-speed communication over short distances with minimal attenuation.
| Specification | G62.5/125 μm | G50/125 μm |
|---|---|---|
| Attenuation at 850 nm | <3.3 dB/km | <2.8 dB/km |
| Bandwidth at 850 nm | >400 MHz | >400 MHz |
Single-Mode Technology
Single-mode fibers are ideal for long-distance, high-bandwidth data transmission.
| Specification | E9/125 μm |
|---|---|
| Attenuation at 1550 nm | <0.3 dB/km |
| Bandwidth at 1310 nm | >1200 MHz |
| Chromatic Dispersion | <18 ps/nm·km |
Mechanical Design
Support System
The cable is reinforced with aramid threads and a lead ball cord arrangement, ensuring a safety factor of 5 when suspended vertically up to 50 meters. This design provides optimal tensile strength and load management.
| Feature | Benefit |
|---|---|
| Aramid Threads | Increased tensile strength |
| Lead Ball Cord Arrangement | Load distribution efficiency |
Protection Features
The outer sheath is made of polyurethane (PUR), which provides:
- Impact resistance to withstand mechanical stresses.
- Resistance to oil, UV, and ozone exposure.
- Superior flame-retardant properties for enhanced safety.
Operating Parameters
Electrical Characteristics
The SPREADERFLEX SYSLTOE ensures stable electrical performance even under demanding conditions.
| Parameter | Specification |
|---|---|
| Rated Voltage | 0.6/1kV |
| Maximum Conductor Temperature | 90°C |
| Short-Circuit Temperature | 250°C |
Optical Performance
The cable integrates advanced fiber optics, delivering reliable data transmission with low attenuation and high bandwidth.
| Fiber Type | Attenuation | Bandwidth |
|---|---|---|
| Multi-Mode | <3.3 dB/km at 850 nm | >400 MHz |
| Single-Mode | <0.4 dB/km at 1310 nm | >1200 MHz |
Environmental Performance
Temperature Management
With its wide operating temperature range of -50°C to 80°C, the cable is engineered for cold environments, ensuring flexibility and performance.
Environmental Resistance
The PUR sheath enhances resistance to:
- Oil, UV, and ozone, protecting the cable from external damage.
- Extreme weather conditions, ensuring operational longevity.
Installation Guidelines
Basket System Design
For optimal performance, follow these recommendations:
- Basket Diameter: Minimum 30xD
- Basket Height: Approximately 45xD
| Dimension | Recommendation |
|---|---|
| Basket Diameter | 30xD |
| Basket Height | 45xD |
Installation Procedures
Proper handling is critical. Lay the cable counter-clockwise, manage tension carefully, and ensure the support system is secure.
Performance Optimization
Mechanical Reliability
The cable is capable of handling travel speeds up to 160 m/min, ensuring smooth operation even under high mechanical stress.
Signal Quality
Advanced EMC shielding and fiber-optic technology guarantee uninterrupted power and data transmission.
Troubleshooting Guide
Common Issues
| Issue | Cause | Solution |
|---|---|---|
| Performance Degradation | Environmental Stress | Inspect sheath, replace if damaged |
| Installation Challenges | Improper Handling | Follow installation guidelines |
Standards Compliance
The SPREADERFLEX SYSLTOE adheres to strict international standards, including:
- DIN VDE 0298-4
- DIN EN 60811-404
Safety Considerations
Vertical suspension safety is ensured with a breaking load rated to provide a safety factor of 5.
Application Examples
Container Handling
This cable optimizes spreader performance in container terminals, ensuring reliable operation under mechanical and environmental stress.
Cold Environment Operations
Ideal for Arctic and sub-zero operations, the cable maintains flexibility and efficiency in extreme temperatures.
Cost-Benefit Analysis
Lifecycle Value
The cable's robust design reduces maintenance costs and enhances operational reliability, offering long-term value.
| Parameter | Benefit |
|---|---|
| Maintenance Costs | Reduced |
| Operational Efficiency | Enhanced |
For more information or technical support, reach out to Feichun Cable today!
