Mining Grade Servo Cable for Precise Position Control – High Response Rate, Enhanced Accuracy, Motion Control Ready
In the world of mining operations, where precision, reliability, and performance are paramount, the importance of using high-quality cables cannot be overstated.
Mining grade servo cables play a vital role in ensuring that critical equipment operates with pinpoint accuracy, speed, and durability. Designed for demanding mining environments, our servo cables for precise position control offer a high response rate and enhanced accuracy, providing a seamless motion control experience for machinery and equipment.
This article will guide you through the essential features, benefits, and applications of our mining grade servo cables, as well as the installation and maintenance tips you need to get the most out of this advanced technology.
What is a Mining Grade Servo Cable?
A mining grade servo cable is specifically engineered for use in high-performance industrial machinery, particularly where precise motion control is required.
These cables connect servo motors to their controllers, providing real-time feedback and high-speed signal transmission. In mining, where machinery operates in harsh environments and often needs to perform complex tasks like material handling, excavation, and drilling, a high-performance servo cable is essential.
Our mining grade servo cables are designed with the following features:
Precise position control: Ensures high accuracy in controlling the movement of heavy machinery.
High response rate: Fast signal transmission ensures real-time adjustments.
Enhanced durability: Designed to withstand the rough conditions found in mining environments.
Key Features of Mining Grade Servo Cables
1. High Response Rate
One of the most critical factors in motion control systems is the response rate. The faster the cable can transmit signals from the motor to the controller, the more responsive the system will be.
Our mining grade servo cables are specifically designed to ensure a high response rate, making them perfect for machinery that requires quick adjustments, such as drills, excavators, and loaders.
2. Enhanced Accuracy
Mining equipment often operates in confined spaces and under challenging conditions, where every movement counts.
Our servo cables offer enhanced accuracy, allowing for precise control over position, speed, and torque. This ensures that machinery performs at its best, minimizing errors and improving operational efficiency.
3. Durability and Flexibility
Mining environments are harsh, with equipment subject to vibrations, chemicals, moisture, and extreme temperatures. Our mining grade servo cables are built to withstand these challenges.
The materials used in manufacturing these cables ensure they remain flexible and durable, even under constant movement and mechanical stress.
4. Oil, Flame, and Abrasion Resistance
In mining operations, cables are often exposed to oils, flames, and abrasions. Our cables are constructed with oil-resistant and flame-retardant materials, making them ideal for use in hazardous mining environments.
They are also designed to resist abrasion, ensuring a long service life even under heavy-duty conditions.
5. Motion Control Ready
The mining grade servo cables are designed to handle the complex demands of motion control systems. Whether it's for automatic loaders, conveyors, or drilling rigs, these cables can transmit high-frequency signals without loss of accuracy or performance.
Their compatibility with servo motors and motion control systems makes them indispensable for modern mining operations.
Advantages of Using Mining Grade Servo Cables
1. Improved Performance
The core advantage of using servo cables for precise position control is the improvement in performance. The high response rate ensures that the machinery responds promptly to changes in the control system, while the enhanced accuracy reduces errors during operations.
This leads to smoother and more efficient operation of equipment.
2. Reduced Downtime
The durability and resilience of these cables reduce the chances of failure, which means reduced downtime.
Mining operations can be costly when equipment is out of service, but using our mining grade servo cables ensures that the system operates reliably over long periods, reducing the need for repairs and replacements.
3. Longer Cable Life
Our cables are built to last. With abrasion resistance, oil resistance, and flame-retardant properties, these cables maintain their integrity even in the toughest environments.
The materials used in construction ensure that the cables can perform efficiently, even when exposed to extreme temperatures, moisture, and chemicals.
4. Cost-Effectiveness
Although mining grade servo cables may initially have a higher price point than standard cables, their extended lifespan and the performance improvements they bring make them a cost-effective investment in the long run.
Reduced downtime, fewer maintenance costs, and improved operational efficiency contribute to significant savings for mining operations.
Technical Specifications of Mining Grade Servo Cables
To better understand the capabilities of our mining grade servo cables, here are the key technical specifications that set them apart from other cables on the market:
| Specification | Description |
| Conductor Material | Copper (High Purity) |
| Insulation Material | Polyvinyl chloride (PVC) / Cross-linked PE |
| Jacket Material | Oil, flame, and abrasion-resistant polyurethane |
| Voltage Rating | 600V |
| Temperature Range | -40°C to +90°C |
| Flex Life | 5 million cycles |
| Shielding | Copper braiding and foil shielding |
| Flexibility | Highly flexible with low bending radius |
| Chemical Resistance | Resistant to oils, chemicals, and solvents |
| Maximum Current | Up to 20A per conductor |
These specifications demonstrate the strength and reliability of our servo cables in demanding mining environments.
Installation Guidelines for Mining Grade Servo Cables
Proper installation of mining grade servo cables is crucial for ensuring their long-term performance. Follow these guidelines to get the best out of your cables:
1. Proper Cable Routing
When routing servo cables, make sure they are laid out in a way that prevents excessive bending or tension. Cables should follow the natural path of the equipment's motion and should not be forced into sharp turns or bends that exceed the cable's minimum bend radius.
2. Avoid Exposure to Heat Sources
Although the cables are designed to withstand high temperatures, it’s still essential to avoid direct exposure to heat sources like exhaust systems or open flames. Ensure that cables are installed in areas where they will not be subjected to prolonged heat exposure.
3. Secure Cable Connections
Ensure that the connections between the servo cables and servo motors are tightly secured to prevent loose connections, which could lead to signal loss or interruptions in performance.
4. Use Cable Protection
Wherever possible, use protective conduit or cable trays to shield the cables from physical damage. In environments where mechanical damage is a concern, such as areas with moving parts, these protective measures can extend the life of your mining grade servo cables.
5. Test the System
After installation, thoroughly test the entire system to ensure the servo cables are functioning correctly. Pay special attention to the response time and precision of the equipment. Any irregularities could indicate an issue with the cable or connections.
Maintenance Tips for Mining Grade Servo Cables
Proper maintenance is key to maximizing the lifespan and performance of your mining grade servo cables. Here are some essential maintenance tips:
1. Inspect Regularly
Inspect the servo cables regularly for signs of wear and tear. Look for any visible damage to the insulation or jacket. This includes cracks, abrasions, or exposed copper conductors, which can compromise performance and safety.
2. Clean the Cables
Keep the cables clean from debris, chemicals, and oils. Use a mild detergent and water to wipe the cables clean. Avoid harsh cleaning agents that may degrade the materials over time.
3. Check for Tightness
Ensure that all connections are secure. Loose connections can result in poor signal transmission, leading to a reduction in accuracy and response rate.
4. Monitor Flex Life
Track the number of flex cycles the cables have undergone. Over time, flexible cables may experience a reduction in performance due to constant bending. If the cables begin to show signs of fatigue, they may need to be replaced.
Applications of Mining Grade Servo Cables
Our mining grade servo cables are ideal for use in various mining applications, where precise motion control and durable performance are essential. These applications include:
Excavators and Drills: Precision control for drilling operations in tough soil and rock conditions.
Loaders and Dump Trucks: Accurate movement control for loading and unloading materials.
Conveyors: Continuous motion control for transporting mined materials.
Shovel and Dragline Machines: High-speed control for large-scale excavation and material handling.
Our mining grade servo cables are engineered to meet the demanding requirements of the mining industry. With high response rates, enhanced accuracy, and superior durability, these cables are the backbone of efficient and reliable motion control systems.
They solve critical issues faced by mining operations, including performance degradation, downtime, and cable failure due to harsh environmental conditions.
By choosing our servo cables for precise position control, you're ensuring that your mining equipment operates with the highest degree of precision and reliability, reducing operational costs and improving efficiency.
Note: This is just part of the standard parameters of our products. Please contact our Engineer if you need more. And the information contained within this webpage is for guidance only and is subject to change without notice or liability. All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All pictures shown are for illustration purposes only. The actual product may vary. All the information is provided in good faith and is believed to be correct at the time of publication.
Product Tags:
|
|

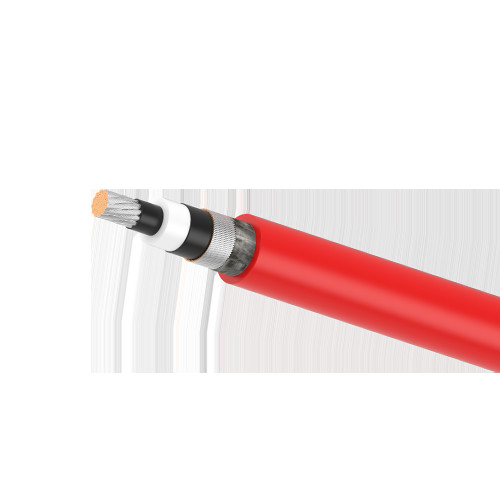

Mining Grade Servo Cable For Precise Position Control - High Response Rate, Enhanced Accuracy, Motion Control Ready Images
|
